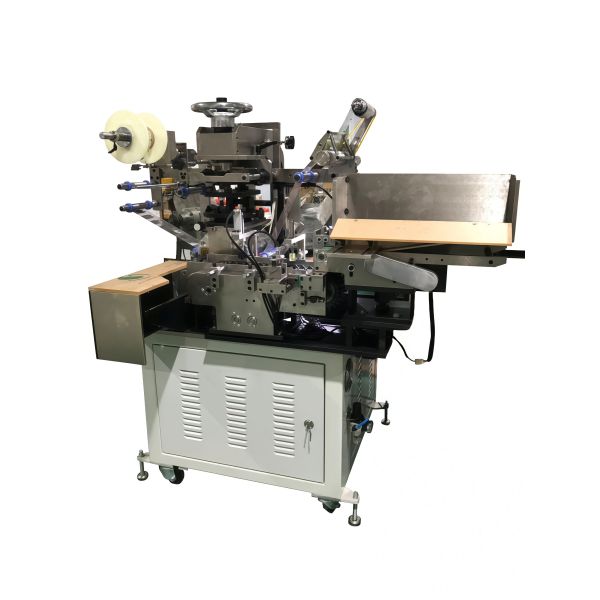

Industrial Automatic Heat Transfer Printing Machine For Pen And Cosmetic Tubes
Product Description
This machine adopts PLC & high-performance touch screen for intelligent control. Equipped with high-speed imported motors, transmission devices and mechanical structure, it realizes stepless speed regulation, synchronous conveying, automatic positioning and no-bottle no-printing function.

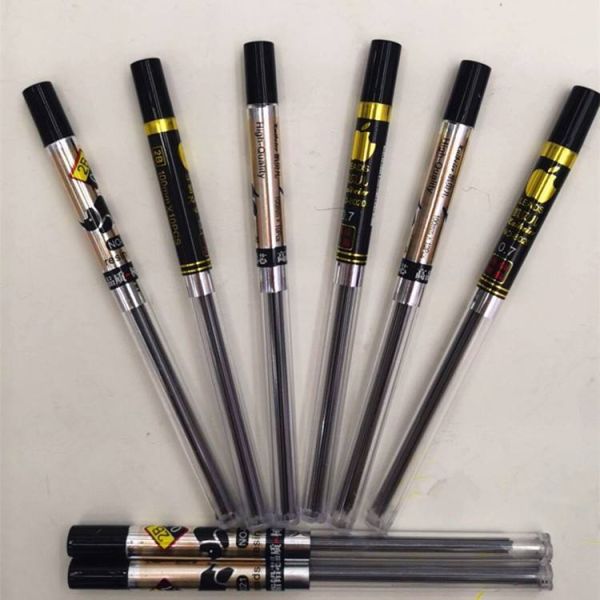

It is specially designed for cylindrical heat transfer printing, widely used for stationery pen holders, lipstick tubes, medical tubes, daily chemical products, glass, hardware and other cylindrical materials.
Main Functions
- PVC conveyor belt
- Automatic direction sorting & reversing function
- Static dust removal system + automatic feeding
- Automatic heat transfer printing
- Stepless speed control system (inverter control)
- No-bottle no-printing system with high-performance photoelectric sensor, reliably detects transparent and black bottles
- Automatic unloading
Main Configurations
- Main motor: SITI (Italy) + reducer
- Speed regulating motor: Taiwan
- PLC: Delta
- Touch screen: Weinview (Taiwan)
- Photoelectric sensor: KEYENCE (Japan) / SICK (Germany)
- Push button switch: IDEC (Japan)
- Contactor: Schneider / Fuji (Japan)
- Relay: OMRON (Japan)
- Inverter: OMRON (Japan)
- Bearing: NSK (Japan)
- Pneumatic components: SMC (Japan)
- Linear guide: HIWIN (Taiwan)
Technical Parameters
- Printing diameter for round products: φ6mm – φ20mm
- Printing height for round products: 6mm – 150mm
- Max printing speed: 2400-3000 Pcs/h (actual subject to product)
- Power supply: AC220V 3Phase 50Hz / 60Hz
- Rated power: 4KW (main unit)
- Air pressure requirement: 5 – 8 bar
- Machine dimensions: L1500mm * W1450mm * H1450mm
- Export wooden case dimensions: L1600mm * W1550mm * H1650mm
- Machine weight: 450kg
- Wooden case weight: 100kg
About us
Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Its products include silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment, which can meet printing requirements of various shapes and materials. It is widely used in various fields and industrys suchs as cosmetics, daily necessities, food, medical supplies, and automotive accessories. The machinery and equipment are exported to multiple countries and regions suchs as Europe, the United States, South Korea, the Middle East, South Africa, Mexico, etc., and are highly trusted by domestic and foreign customers.
We always adhere to the five core concepts of "efficiency, excellence, energy conservation, integrity, and win-win", and are committed to providing customers with suitable and excellent technical solutions. Haoan has a strong professional technology research and development team that can customize the most suitable machinery and equipment according to the different requirements of customers, and will continue to innovate to make products intelligent and efficient. The company not only provides excellent machinery and equipment, but also provides professional technical training and supporting services, truly achieving what customers want and reach.
FAQ
- Q. How long is the machine's warranty period? A.We offer a 2-year warranty and long-term service
- Q. What technical support services are provided after purchase? A.We provide on-site installation service and professional engineer training
- Q. How will you help us resolve after-sales repair issues if the machine malfunctions? A.In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary
- Q. What inks does the machine support? A.We use UV-based environmentally friendly inks, imported environmentally friendly inks
- Q.What certifications can you provide? A.We have ISO9001, SGS, and RoHS certifications
