Automatic Screen Printing Machine For Cylindrical Freezer Tubes With High Speed And Intelligent Control

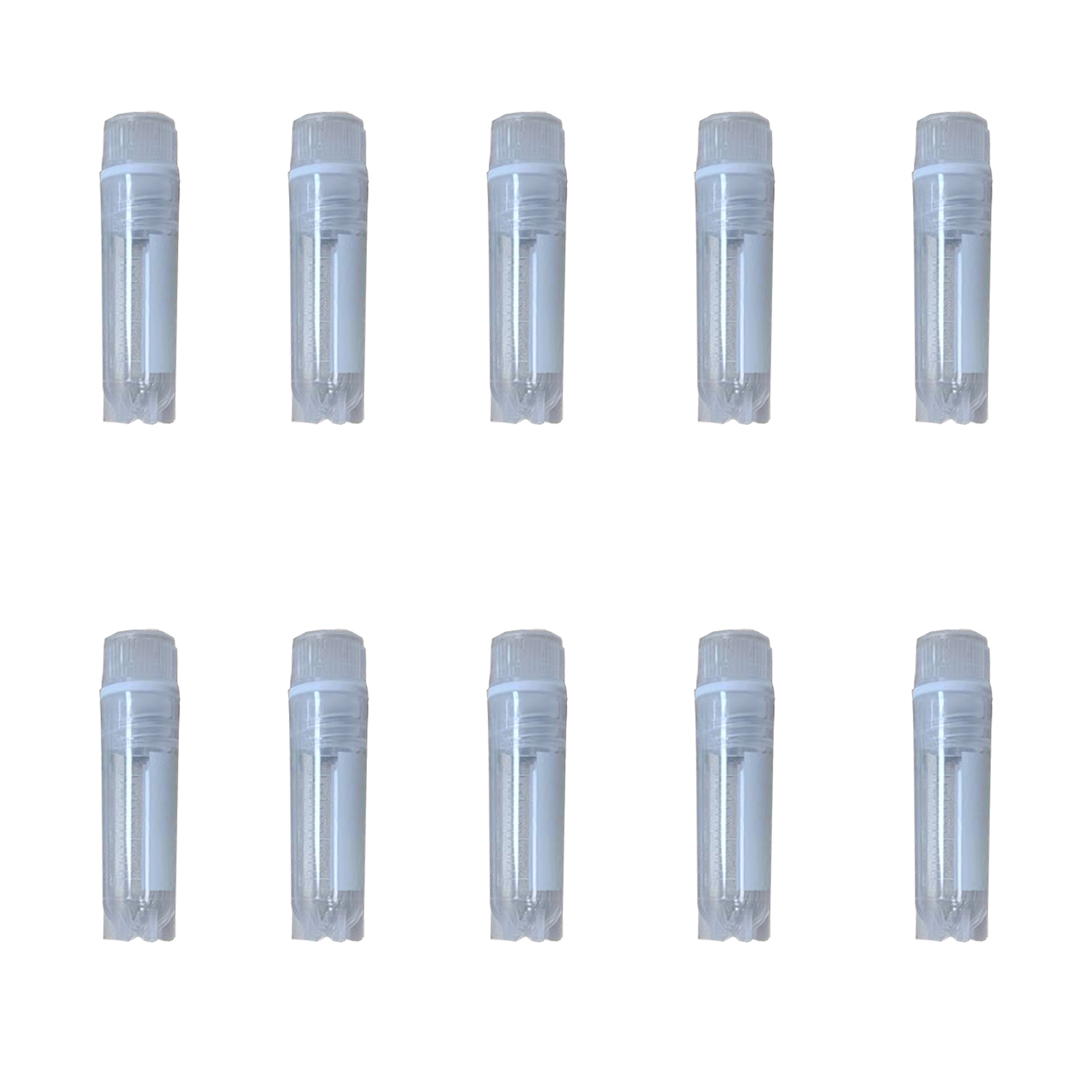

This cylindrical printing machine is designed to meet all cylindrical printing requirements, with strong compatibility for containers such as freezer tubes and virus tubes. It realizes intelligent control of the entire machine operation through a programmable controller (PLC) and a high-performance touch screen. Equipped with a brand-new high-speed transmission system composed of advanced imported motors, speed control devices and mechanical transmission, it supports stepless speed regulation, synchronous transmission, automatic alignment, no printing without bottles and other practical control functions.
Main Functions
-
V-shaped conveyor belt, optional vibrating feeder for automatic feeding
-
Automatic direction separation and turning function, improving printing accuracy
-
Electrostatic dust removal system, ensuring clean printing surface
-
Flame treatment or plasma treatment (customer's choice) for better ink adhesion
-
Stepless speed control system, controlled by frequency converter for flexible adjustment
-
Bottle-free printing system: adopts high-performance photoelectric sensors, which can reliably identify both transparent bottles and black bottles
-
UV curing system, enabling fast and firm ink curing
-
Automatic discharging by finger cylinders, improving production efficiency
Main Configurations
-
Separator: Taiwan Dashi & Japan San-Koku
-
Main Machine Motor: SITI (Italy) with reducer
-
Programmable Controller (PLC): Panasonic (Japan)
-
Touch Screen: Taiwan Weilun Tong
-
Photoelectric Switch: KEYENCE (Japan) / SICK (Germany)
-
Button Switch: IDEC (Japan)
-
Contactor: SCHNEIDER (France) / Fujifilm (Japan)
-
Relay: OMRON (Japan)
-
Frequency Converter: OMRON (Japan)
-
UV Curing System: HONOVIA (USA) or LED option
-
Pneumatic Components: SMC (Japan) / AIRTAC (Taiwan)
-
Guide Rails: Taiwan HIWIN
-
Bearings: NSK (Japan)
Technical Specifications
-
Circular Printing Diameter: 10mm ~ 30mm
-
Circular Printing Height: 20mm ~ 230mm
-
Fastest Printing Speed: Approximately 2400 - 2700 Pcs/hour for circular products (subject to actual products)
-
Power Requirement: AC 380V 3Phase 50Hz / 60Hz
-
Rated Power: 4.5KW (main unit)
-
Air Pressure Requirement: 5 ~ 8 bar
-
Machine Size: L1450MM * W2400MM * H1850MM
-
Export Wooden Box Size: L1550MM * W2500MM * H2050MM
-
Machine Weight: 1350KG
-
Wooden Box Weight: 180KG
This cylindrical printing machine integrates intelligence, high efficiency and stability, suitable for batch printing of small cylindrical containers such as freezer tubes and virus tubes. With imported core components and humanized operation design, it can greatly improve production efficiency and printing quality, reducing manual operation costs.
About us
Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Its products include silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment, which can meet printing requirements of various shapes and materials. It is widely used in various fields and industries such as cosmetics, daily necessities, food, medical supplies, and automotive accessories. The machinery and equipment are exported to multiple countries and regions suchs as Europe, the United States, South Korea, the Middle East, South Africa, Mexico, etc., and are highly trusted by domestic and foreign customers.
We always adhere to the five core concepts of "efficiency, excellence, energy conservation, integrity, and win-win", and are committed to providing customers with suitable and excellent technical solutions. Haoan has a strong professional technology research and development team that can customize the most suitable machinery and equipment according to the different requirements of customers, and will continue to innovate to make products intelligent and efficient. The company not only provides excellent machinery and equipment, but also provides professional technical training and supporting services, truly achieving what customers want and reach.
FAQ
- Q. How long is the machine's warranty period?
A.We offer a 2-year warranty and long-term service
- Q. What technical support services are provided after purchase?
A.We provide on-site installation service and professional engineer training
- Q. How will you help us resolve after-sales repair issues if the machine malfunctions?
A.In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary
- Q. What inks does the machine support?
A.We use UV-based environmentally friendly inks, imported environmentally friendly inks
- Q.What certifications can you provide?
A.We have ISO9001, SGS, and RoHS certifications
